Optimize Surface Drying. Enhance Thermal Balance. Unlock Peak Production.

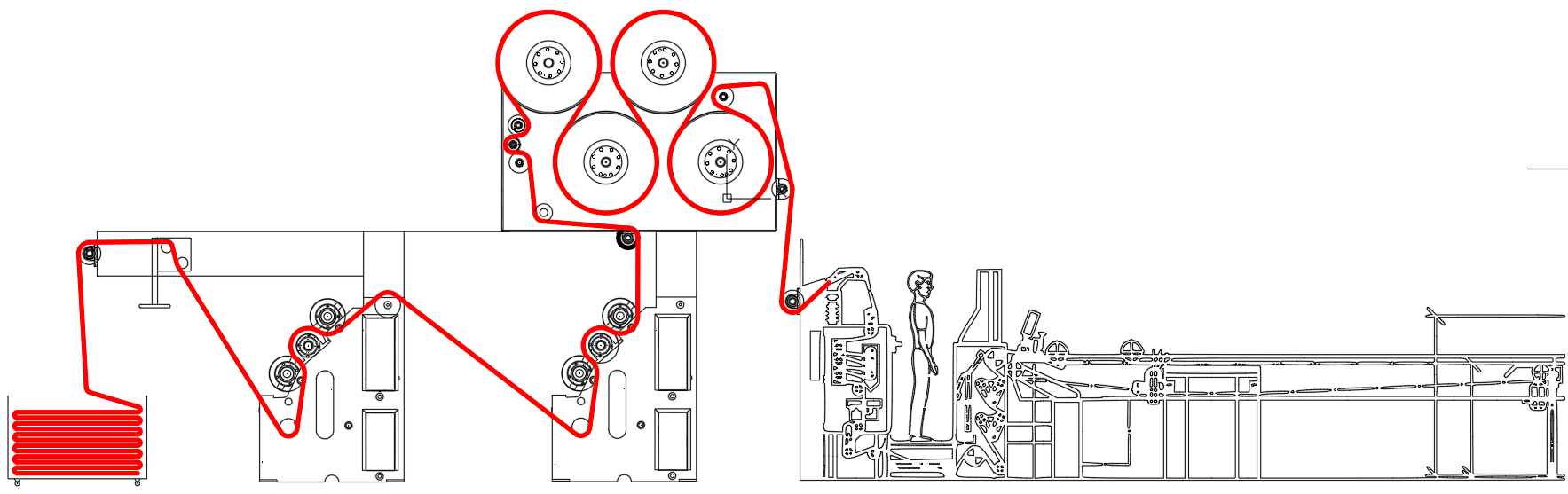

ThermEdge Pre-Dryer is installed above the finishing padders of the stenter machine. It efficiently removes surface moisture from the fabric immediately after it exits the final padder, enhancing evaporation, boosting production speed, and reducing overall energy consumption.

Optimize Surface Drying. Enhance Thermal Balance. Unlock Peak Production.

ThermEdge Pre-Dryer is installed above the finishing padders of the stenter machine. It efficiently removes surface moisture from the fabric immediately after it exits the final padder, enhancing evaporation, boosting production speed, and reducing overall energy consumption.

Technical Specification

Number Of Cylinders 3/4/6
Opearting Width 1500 to 4000
Cylinder Finish PTFE Teflon Coated/Polished
Working Fabric Types Knitted And Woven
Steam Consupmtion 40Kg/Hour For One Cylinder of 2600mm
Electrical Consumption 2.5Kw/Hr (For 4 Cylinders)

Advantages

  • No Extra Space Needed For Mounting
  • Increase in Production capacity by 20-30%
  • Tension Free fabric Flow
